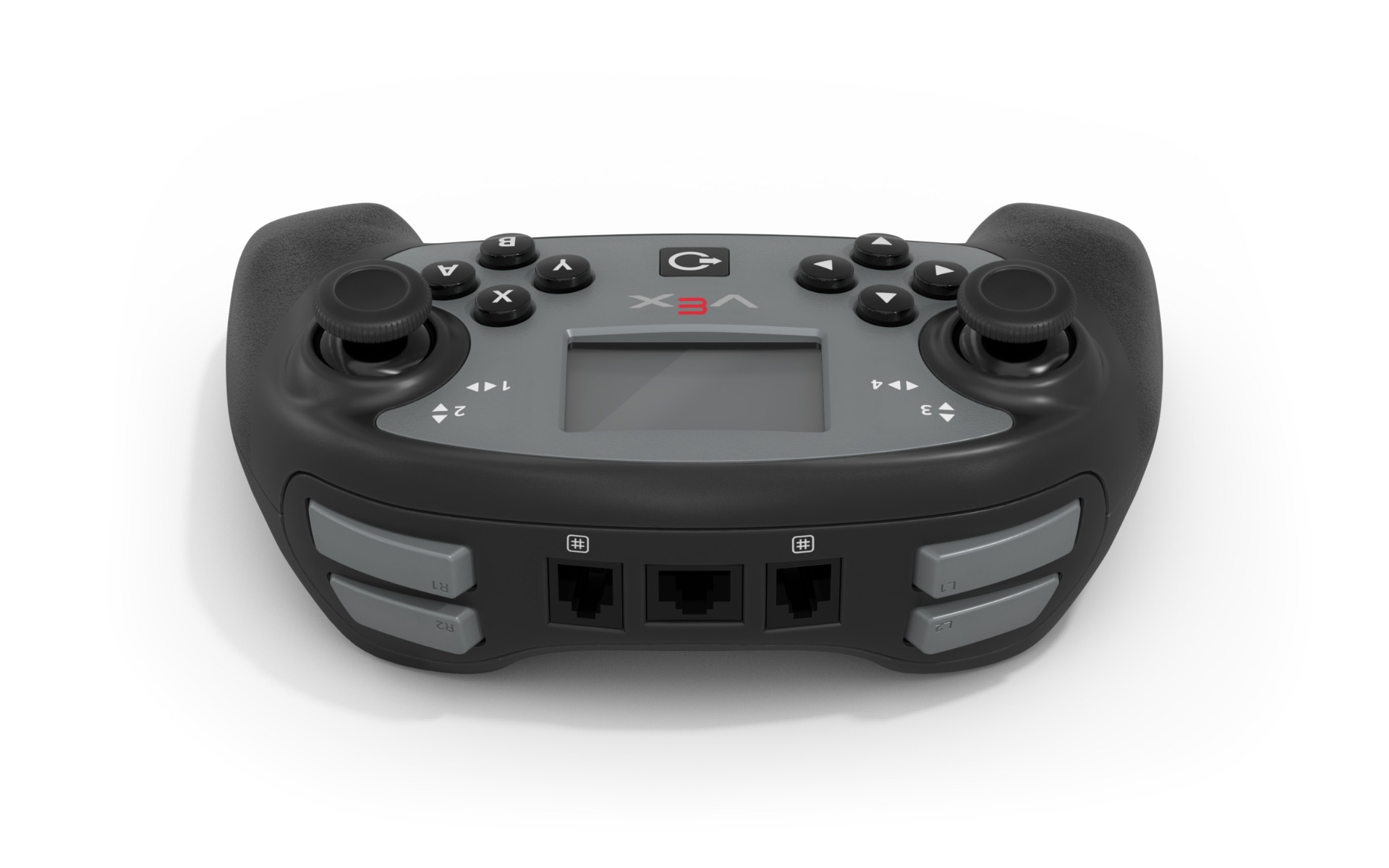

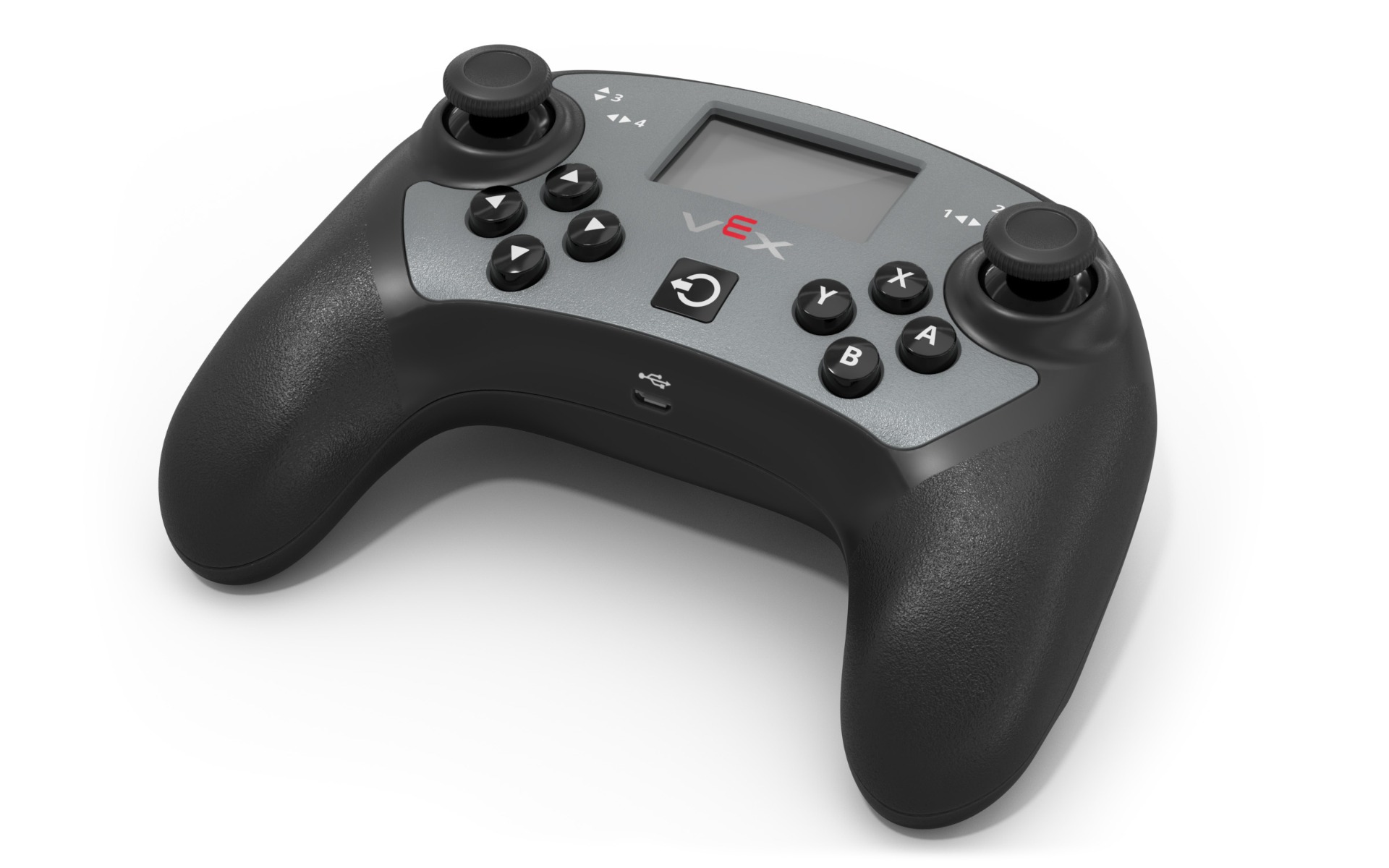

V5 控制器
V5 Controller
VEX V5 控制器是机器人无线遥控设备，配备双摇杆、多功能按键与屏幕，内置锂电池，通过无线协议与主控脑实时通信，操控精准，适用于赛场操控和日常练习。
可选择的配置：
产品分类：
电子元器件
产品清单：
-
(1) V5 控制器
实时反馈
通过其单色LCD屏幕，V5控制器向用户提供了Robot Brain的即时反馈。程序员可以将数据和多语言文本发送到屏幕，以获取调试信息和驱动程序信息。
内部构造
V5控制器包括可编程的触觉反馈，可以在发生事件（例如取入物体）时触发。控制器的集成3.7v锂离子电池一次充电可提供长达10小时的使用寿命。通过其USB端口，可以通过多种方式对控制器进行充电，例如壁式插座，笔记本电脑或USB移动电源。
V5 与 V4对比
| V5 Wireless Controller Specifications | VEXnet Joystick | |
|---|---|---|
| User Interface | Built-in monochrome LCD 128 x 64 pixels Backlight with white or red LEDs |
3 Red Green LEDs 27 LED blink patterns |
| Interface Features | Select, Start, Stop Programs Robot and Controller and Partner battery level Radio link type and signal strength Competition mode indication Language selection (10 choices). |
Controller LED Robot LED Link LED Game LED |
| User Feedback | Up to (3) lines of multilingual text to the LCD Up to (3) graphical widgets with (1) line of text |
|
| Wireless | VEXnet 3.0 and Bluetooth 4.2 Download and Debug at 200 kbps |
VEXnet 2.0 Download and Debug at 90 kbps |
| Analog Axis | 2 Joysticks | 2 Joysticks |
| Buttons | 12 | 12 |
| Extra Feature | Haptic Rumble Motor | Tilt Sensor |
| Battery Type | Li-ion | Six rechargeable AAA cells |
| Battery Run Time | 8-10 Hours | Less than 1 Hour |
| Battery Charge Time | 1 Hour | |
| Auto Sleep | Yes | |
| Partner Port | Yes | Yes |
| Partner Controller Type | V5 Controller | VEXnet Joystick or Partner Joystick |
| Weight | 0.77 lbs (350g) | 0.47 lbs (213g) |
